In modern computing, performance no longer has to come at the cost of size. The Nano ITX motherboard AMD lineup is redefining what’s possible for compact, efficient, and high-performance systems. Designed for small form factor (SFF) builders, embedded developers, and industrial engineers, these boards deliver full PC functionality in a footprint small enough to fit in the palm of your hand. Whether you’re assembling a silent media center, a compact workstation, or a smart IoT device, Nano-ITX motherboards offer the right balance of power, size, and reliability.
What Is a Nano-ITX Motherboard?

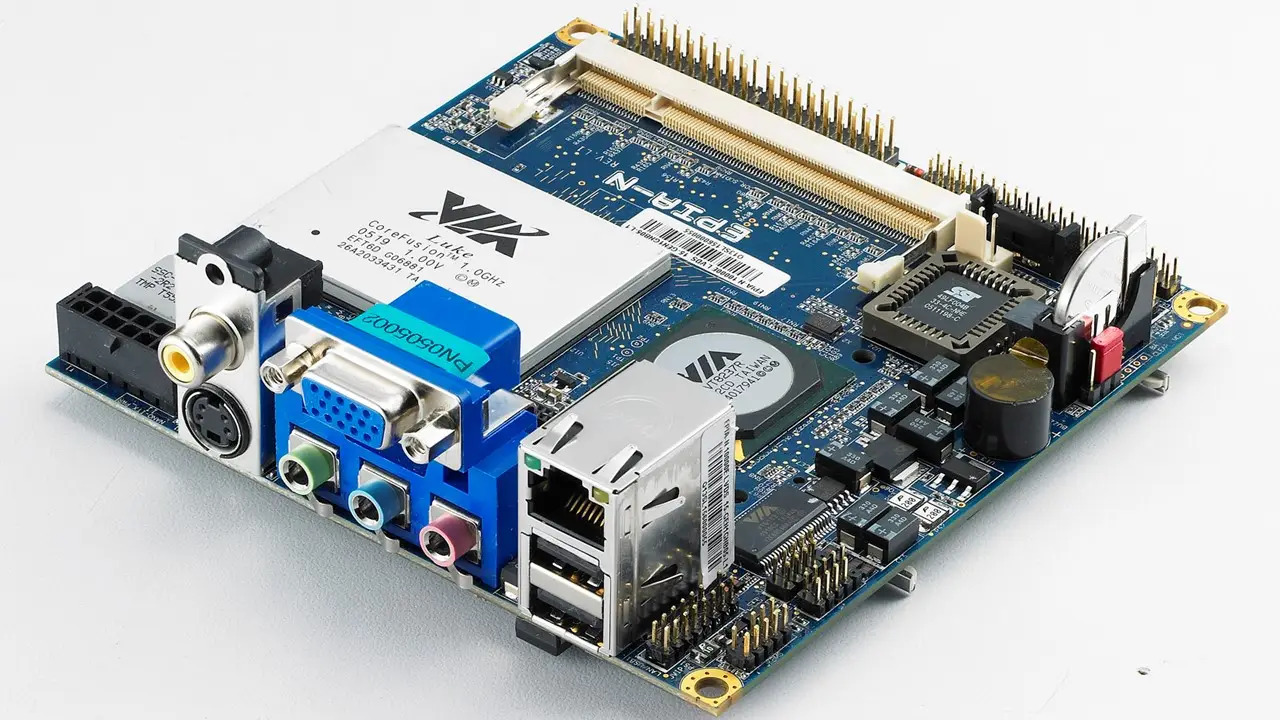

A Nano-ITX motherboard is one of the smallest standardized motherboard formats, measuring just 120 × 120 millimeters (4.7 × 4.7 inches). Developed by VIA Technologies in 2003, this form factor was initially created for embedded applications but has since found popularity in compact PCs and industrial systems.
Despite its small size, a Nano-ITX board supports full PC functionality, typically including:
- Integrated or socketed processors (commonly AMD Ryzen Embedded or Intel Atom)
- DDR4 or DDR5 SO-DIMM slots for memory
- M.2 NVMe or SATA storage support
- USB, HDMI, Ethernet, and expansion headers
- Optional Wi-Fi or Bluetooth modules via M.2 or Mini PCIe
This compact design enables developers and builders to create complete, power-efficient systems without sacrificing connectivity or flexibility.
Nano-ITX vs. Other Small Form Factor Boards
Small form factor computing comes in multiple standards each designed for specific use cases. Nano-ITX occupies the middle ground between performance and size.
| Form Factor | Dimensions (mm) | Use Case | Advantages |
|---|---|---|---|
| Mini-ITX | 170 × 170 | Small desktop and gaming PCs | Greater expandability |
| Nano-ITX | 120 × 120 | Compact PCs, IoT, industrial systems | Balance of size and performance |
| Pico-ITX | 100 × 72 | Embedded and robotics applications | Ultra-small, lowest power use |
The Nano-ITX standard strikes a balance between compactness and capability small enough for embedded use, yet powerful enough for full-fledged desktop or edge computing tasks.
Why Nano-ITX Motherboards Are Ideal for Compact PCs
1. Power-Efficient Performance
Modern Nano ITX motherboard AMD models are powered by Ryzen Embedded processors, which offer high compute density, integrated Radeon Vega graphics, and strong performance-per-watt ratios. This makes them suitable for both general-purpose computing and specialized applications like AI edge processing or digital signage.
2. Silent Operation and Low Heat
With processors rated between 6–25W TDP, Nano-ITX systems typically operate silently using passive cooling solutions. This makes them ideal for fanless builds, home theater PCs, or environments where noise and dust must be minimized.
3. Industrial Reliability
Many Nano-ITX motherboards are engineered for industrial use. They feature extended operating temperature ranges, wide voltage input (often 9–36V DC), and high vibration resistance. Such specifications make them reliable for automation, robotics, and edge computing applications.
4. Flexible Power Options
Nano-ITX boards generally use direct DC power input, eliminating the need for bulky ATX power supplies. This design flexibility supports custom enclosures and deployment in tight or mobile environments.
5. Compact Yet Feature-Rich
Despite their size, modern Nano-ITX boards provide multiple USB 3.2 ports, dual Ethernet, NVMe storage, and 4K-capable video outputs. Some even support hardware-based security and remote management features, further expanding their versatility.
Typical Specifications of a Nano-ITX Motherboard
| Feature | Specification |
|---|---|
| Processor | Integrated AMD Ryzen Embedded or Intel Atom/Celeron |
| Memory | Up to 32GB DDR4/DDR5 SO-DIMM |
| Graphics | Integrated Radeon Vega or Intel UHD |
| Storage | 1x M.2 NVMe, 2x SATA ports |
| Networking | 1–2 LAN ports, optional Wi-Fi/BT |
| Display Outputs | HDMI, DisplayPort, LVDS, or eDP |
| Power Input | 12V or wide-range DC (9–36V) |
| Size | 120 × 120 mm (Nano-ITX Standard) |
Common Use Cases
1. Home Theater PCs (HTPCs):
Compact, silent, and capable of 4K playback Nano-ITX boards are perfect for small entertainment systems.
2. IoT Edge Devices:
With support for multiple interfaces and network connectivity, these boards are widely used in IoT gateways and AI edge nodes.
3. Industrial Automation:
Rugged reliability and extended uptime make Nano-ITX motherboards ideal for factory controls, kiosks, and robotics.
4. Embedded AI Systems:
Paired with Ryzen Embedded chips, they handle AI inference, video analytics, and automation workloads efficiently.
5. Mini NAS or Micro Server:
Energy-efficient, small-scale servers that offer reliable performance for home or enterprise applications.
Leading Nano-ITX Motherboards in 2025
| Model | Processor | Key Features | Recommended Use |
|---|---|---|---|
| ASRock N100DC-ITX | Intel N100 | DDR5, NVMe, DC input | Compact home server |
| Jetway NF795 | AMD Ryzen Embedded V1605B | Dual LAN, 4K video, fanless | Edge AI and IoT |
| DFI GHF51 | AMD Ryzen Embedded R1000 | Ultra-compact, fanless | Robotics and automation |
| VIA EPIA-N700 | VIA Nano U2250 | Legacy ports, rugged build | Industrial control |
These examples show how the Nano ITX motherboard AMD lineup has evolved, bringing together high efficiency, integrated graphics, and industrial-grade reliability.
Why Developers and Builders Prefer Nano-ITX
The Nano-ITX form factor empowers developers to create innovative solutions where space and efficiency are critical. From compact media systems to embedded AI devices, it enables real-world applications that traditional motherboards can’t accommodate. The integration of AMD Ryzen Embedded technology further enhances performance, providing scalable power in a fanless, energy-efficient design.
Final Thoughts
As computing continues to shift toward smaller, smarter, and more efficient systems, the Nano ITX motherboard AMD ecosystem stands out as a cornerstone of compact innovation. It offers the performance of desktop-class hardware in a format built for next-generation embedded, industrial, and IoT systems.
For builders, engineers, and developers seeking reliable, energy-efficient platforms without compromising performance, Nano-ITX motherboards represent the ideal blend of form and function proving that in modern computing, small truly can be powerful.
